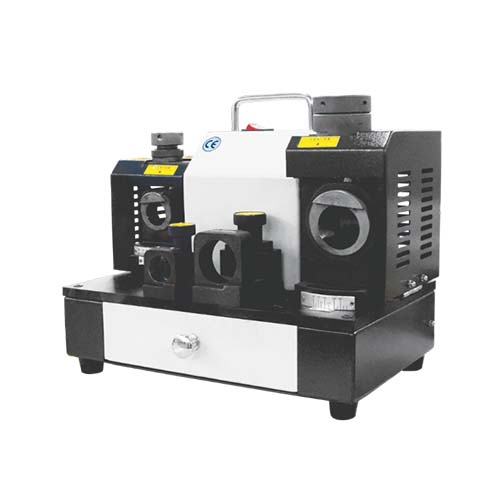

GD-430

1. Professional drill bit grinder. Grinding is accurate and quick, no special skills required.
2. Economical and practical, significant cost saving, improved use efficiency.
3. The grinder uses diamond grinding wheel with an accurate angle and long service life.
4. Installed grinding wheel can complete all processes, accurate angles, long service life, great cost saving, improved use. The machine is set up with the function of adjusting central point size, controls the quality and accuracy of the workpiece and extends the service life of the drill bit.



GD-430

Grinding Range (mm)

Normal Twist drill: 3 -32

90º center drill: 3 -16

Collet size

ER20 & ER40

Apex angle

90º~145º

Grinding wheel

CBN for HSS

(SDC for tungsten Carbide is Optional)

Power (W)

300

Voltage (V)

220, 50Hz

Speed (rpm)

4000

Packing size L×W×H (cm)

41.5 × 30 × 35.5

Gross/ Net weight (kg)

36/ 31
